Notice:

1. Owing to Microsofts certifying schedule is various to every

supplier, we might have some drivers not certified yet by

Microsoft. Therefore, it might happen under Windows XP that a

dialogue box (shown as below) pop out warning you this

software has not passed Windows Logo testing to verify its

compatibility with Windows XP. Please rest assured that our RD

department has already tested and verified these drivers. Click

the Continue Anyway button and go ahead the installation.

2. USB 2.0 Driver Limitations:

2-1 The USB 2.0 driver only supports Windows XP and

Windows 2000.

2-2 If you connect a USB 2.0 hub to the root hub, plugging USB devices into this hub, the system might not successfully execute certain USB devices connection because it could not recognize these devices.

Currently, we are working on such limitations solution. As soon as the solution is done, the updated USB drive will be released to our website: www.pcchips.com.tw for your downloading.

Table of Contents

Trademarks  I

Chapter 1: Introduction 1

Key Features

Package Contents 6

Static Electricity Precautions 7

Pre-Installation Inspection 7

Chapter 2: Mainboard Installation 9

Mainboard Components 10

I/O Ports 11

Install A CPU 11

Install Memory 13

Setting Jumper Switches 15

Install the Mainboard 16

Optional Extension Brackets 18

Install Other Devices 19

Expansion Slots 22

Chapter 3: BIOS Setup Utility 25

Introduction 25

Running the Setup Utility 26

Standard CMOS Setup Page 27

Advanced Setup Page 28

Power Management Setup Page 30

PCI / Plug and Play Setup Page 32

Load Optimal Settings 33

Load Best Performance Settings 33

Features Setup Page 34

CPU PnP Setup Page 36

Hardware Monitor Page 37

Change Password 37

Exit 38

Chapter 4: Software & Applications 39

Introduction 39

Installing Support Software 40

Bundled Software Installation 42

This mainboard has a Socket-A support for the AMD K7 processors. The Socket-A processors front-side bus speed is 200/266MHz.

This mainboard has a KM266 chipset that supports a 4X AGP slot for highly graphics display, 100/133 MHz DDR/SDR, and Ultra DMA ATA100/133 function to provide outstanding high system performance under all types of system operations. The mainboard has the built-in AC97 Codec, a CNR (Communications and Networking Riser) slot and a built-in 10BaseT/100BaseTX Network Interface. This mainboard has the 128-bit 2D/3D AGP Graphics Accelerator with 32MB frame buffer, supporting AGP 4X 266MHz mode up to 1GB/s bandwidth, which provides a direct connection between the graphics sub-system and memory so that the graphics do not have to compete for processor time with other devices on the PCI bus. There is a full set of I/O Ports including PS/2 keyboard and mouse ports, two back-panel USB 2.0 ports, one parallel port, one serial port and one onboard VGA (S3). Connecting extended USB modules to the mainboard makes four extra USB 2.0 ports (headers USB2 and USB3).

This mainboard has all the features you need to develop a powerful multimedia workstation that is network ready. The board is Micro ATX size and has power connectors for an ATX power supply.

Key Features

The key features of this mainboard include:

Socket-A Processor Support

Supports AMD Athlon XP/Athlon/Duron processors

Supports 200/266 MHz Front-Side Bus

Chipset

There are VIA KM266 Northbridge and VT8235 Southbridge in this chipset in accordance with an innovative and scalable architecture with proven reliability and performance. A few of the chipsets advanced features are:

An advanced V-Link memory controller architecture that provides the bandwidth up to 266 MB/s and performance necessary for even the most demanding Internet and 2D/3D graphics

Support for an 4xAGP interface providing vivid 2D/3D graphics and video performance

Memory Support

Two 168-pin DIMM slots for SDRAM memory modules

Two 184-pin DIMM slots for DDR memory modules

Support for 100/133 MHz memory bus

Maximum installed memory is 2GB

Notice: You can NOT use SDRAM and DDR simultaneously.

Expansion Slots

One CNR slot

One 4X AGP slot for AGP 2.0-compliant interface

Two 32-bit PCI slots for PCI 2.2-compliant bus interface

Onboard IDE channels

Primary and Secondary PCI IDE channels

Support for PIO (programmable input/output) modes

Support for Multiword DMA modes

Support for Bus Mastering and Ultra DMA ATA 100 33/66/100/133 modes

Power Supply and Power Management

ATX power supply connector

ACPI and previous PMU support, suspend switch, keyboard power on/off

Supports Wake on LAN

VGA

Single cycle 128-bit 3D architecture

128-bit 2D graphic engine

8/16/32 MB frame buffer using system memory

Supports AGP 4X 266 MHz mode up to 1GB/s bandwidth

Supports 250MHz RAMDAC

2D/3D resolutions up to 1920x1440

Supports AGP Rev. 2.0 Spec. Compliant

AC97 Codec

Compliant with AC97 2.1 specification

16-bit stereo full-duplex CODEC with fixed 48KHz sampling rate

3 analog line-level stereo inputs with 5-bit volume control: LINE-IN, CD-IN, AUX-IN

1 analog line-level mono input: PHONE-IN

Three Audio Jacks Line-Out, Line-In and Microphone-In

Sound Blaster, Sound Blaster Pro Compatible

Advanced power management support

Onboard I/O Ports

Provides PC99 Color Connectors for easy peripheral device connections

Floppy disk drive connector with 1Mb/s transfer rate

Two PS/2 ports for keyboard and mouse

One serial port with 16C550-compatible fast UART

One parallel port with ECP and EPP support

One MIDI/Game port

Two back-panel USB ports and extra four USB ports (onboard USB headers: header USB2 and USB3) all support USB2.0

One infrared port connector for optional module

Built-in Ethernet LAN

10Base-TX/100Base-T Physical Layer Solution

Dual Speed 100/10 Mbps

MII Interface to Ethernet Controller/Configuration & Status

Auto Negotiation: 10/100, Full/Half Duplex

Meet All Applicable IEEE802.3, 10Base-T and 100Base-TX Standards

USB 2.0

Compliant with Universal Serial Bus Specification Revision 2.0

Compliant with Intels Enhanced Host Controller
Interface Specification Revision 0.95

Compliant with Universal Host Controller Interface
Specification Revision 1.1

PCI multi-function device consists of two UHCI Host
Controller cores for full-/low-speed signaling and one
EHCI Host Controller core for high-speed signaling

Root hub consists 4 downstream facing ports with
integrated physical layer transceivers shared by UHCI and
EHCI Host Controller

Support PCI-Bus Power Management Interface
Specification release 1.1

Legacy support for all downstream facing ports

Hardware Monitoring

Built-in hardware monitoring for CPU & System temperatures, fan speeds and mainboard voltages

Onboard Flash ROM

Supports Plug and Play configuration of peripheral devices and expansion cards

Bundled Software

PC-Cillin2000 provides automatic virus protection under Windows 98/ME/NT/2000/XP

MediaRing Talk provides PC to PC or PC to Phone internet phone communication

3Deep delivers the precise imagery and displays accurate color in your monitor

PC DJ is a dual-MP3 player that enables users to actually mix music right on their own personal computers.

Adobe Acrobat Reader V5.0 is the software to help users read .PDF files.

Dimensions

Micro ATX form factor (24.4cm x 24.4cm)

Package Contents

Attention: This mainboard serial has two models, M825LU

(USB2.0, LAN) and M825U(USB2.0). Please contact your local supplier for more information about your purchased model. Each model will support different specification listed as below:

Your mainboard package ships with the following items:

q       The mainboard

q       This Users Guide

q       1 UDMA/66 IDE cable

q       1 Floppy disk drive cable

q       Support software on CD-ROM disk

Optional Accessories

You can purchase the following optional accessories for this mainboard.

q       Extended USB module

Static Electricity Precautions

Components on this mainboard can be damaged by static electricity. Take the following precautions when unpacking the mainboard and installing it in a system.

Keep the mainboard and other components in their original static-proof packaging until you are ready to install them.

During installation, wear a grounded wrist strap if possible. If you dont have a wrist strap, discharge static electricity by touching the bare metal of the system chassis.

Handle the mainboard carefully by the edges. Avoid touching the components unless it is absolutely necessary. During installation put the mainboard on top of the static-protection packaging it came in with the component side facing up.

Pre-Installation Inspection

Inspect the mainboard for damage to the components and connectors on the board.

If you suspect that the mainboard has been damaged, do not connect power to the system. Contact your mainboard vendor and report the damage.

To install this mainboard in a system, please follow these instructions in this chapter:

q       Identify the mainboard components

q       Install a CPU

q       Install one or more system memory modules

q       Make sure all jumpers and switches are set correctly

q       Install this mainboard in a system chassis (case)

q       Connect any extension brackets or cables to connecting headers on the mainboard

q       Install other devices and make the appropriate connections to the mainboard connecting headers

Note:

Before installing this mainboard, make sure jumper JP2 is under Normal setting. See this chapter for information about locating JP2 and the setting options.

Never connect power to the system during installation; otherwise, it may damage the mainboard.

Mainboard Components

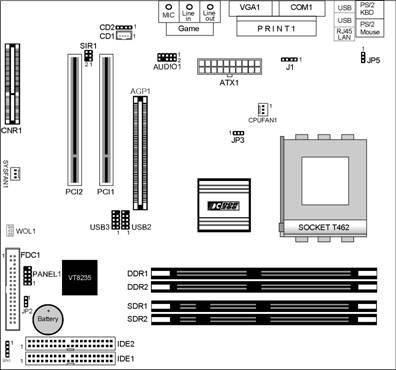

This diagram below identifies major components on the mainboard.

Note: Any jumpers on your mainboard that do not appear in the illustration above are for testing only.

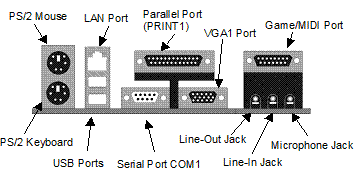

I/O Ports

Install A CPU

This mainboard has a Socket-462 CPU socket for AMD K7 processors.

To ensure reliability, ensure that your processor has a heatsink/cooling fan assembly.

Do not try to install a Socket-370/Socket-7 processor in the Socket-462. A Socket-370/Socket-7 processor such as the PPGA Celeron, FCPGA Pentium-III, Pentium-MMX, or the AMD K5/K6 does not fit in the Socket-462.

The following list notes the processors that are currently supported by this mainboard.

Athlon XP: 2000+ and up; FSB: 266 MHz

Athlon: 650 MHz~1.4 GHz, FSB: 200 MHz, 266 MHz

Duron: 550 MHz~1.2 GHz, FSB: 200 MHz

Installing a Socket-462 Processor

A processor installs into the ZIF (Zero Insertion Force) Socket-462 on the mainboard.

Locate the Socket-462 and CPUFAN1. Pull the locking lever out slightly from the socket and raise it to the upright position.

On the processor, identify the Pin-1 corner by its beveled edge.

On the Socket-462, identify the Pin-1 corner. The Pin-1 corner is at the top of the locking lever when it locked.

Match the Pin-1 corners and insert the processor into the socket. No force is required and the processor should drop into place freely.

Swing the locking lever down and hook it under the catch on the side of the socket. This secures the CPU in the socket.

All processors should be installed with a combination heatsink/cooling fan (the original fan is recommended, the others fan is not), connect the cable from the fan to the CPU fan power connector CPUFAN1.

See the Setting Jumper Switches section for detail information on CPU System Bus settings.

Install Memory

This mainboard accommodates 168-pin 3.3V/184-pin 2.5V unbuffered SDRAM/DDR SDRAM (Double Data Rate SDRAM) memory modules. The memory chips must be standard or registered SDRAM (Synchronous Dynamic Random Access Memory).

You must install at least one memory module in order to work the mainboard, either SDRAM or DDR SDRAM, but you cannot work them simultaneously.

SDRAM provides 800 MB/s or 1 GB/s data transfer rate corresponding with the bus 100 MHz or 133 MHz. It doubles the rate to 1.6 GB/s and 2.1 GB/s by transferring data on both the rising and falling edges of the clock. DDR SDRAM uses additional power and ground lines and requires 184-pin 2.5V unbuffered DIMM module reather than the 168-pin 3.3V unbuffered DIMMs used by SDRAM.

Installation Procedure

The mainboard accommodates two memory modules. You must install at least one module of them. Each module can be installed with up to 2 GB system memory.

Install the memory modules as the following steps:

Push the latches on each side of the DIMM socket down.

Align the memory module with the socket. The DIMM sockets are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed correctly.

Check that the cutouts on the DIMM module edge connector match the notches in the DIMM socket.

Install the DIMM module into the socket and press it firmly down until it is seated correctly. The socket latches are levered upwards and latch on to the edges of the DIMM.

Install any remaining DIMM modules.

Setting Jumper Switches

Jumpers are sets of pins connected together with jumper caps. The jumper caps change the mainboards operation by changing the electronic circuits on the mainboard. If we connect two pins with a jumper cap, these pins are SHORT; if remove a jumper cap from these pins, they are OPEN.
