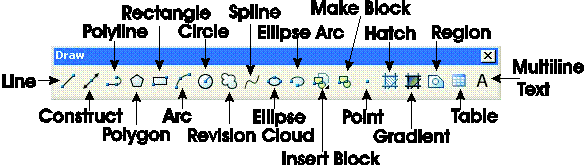

COMENZI DE DESENARE

Comanda

Semnificatie

Line

Deseneaza segmente de dreapta

Construct(ion Line)

Deseneaza drepte

Polyline

Deseneaza obiecte compuse din segmente de dreapta si arce de cerc

Polygon

Deseneaza poligoane regulate

Rectangle

Deseneaza un dreptunghi

Arc

Deseneaza un arc de cerc

Circle

Deseneaza un cerc

Revision Cloud

Deseneaza obiecte compuse din arce de cerc (asemanatoare formei norilor), obiecte menite sa atraga atentia asupra unei anumite parti a ansamblului desenat

Spline

Deseneaza o curba spline (curba neteda care trece prin sau foarte aproape de o multime data de puncte din plan sau din spatiu)

Ellipse

Deseneaza o elipsa

Ellipse Arc

Deseneaza un arc de elipsa

Insert Block

Insereaza un desen deja executat ca bloc intr-un alt desen pe cale de executie

Make Block

Transforma un desen executat intr-un bloc ce urmeaza sa fie inserat intr-un alt desen

Point

Deseneaza un punct

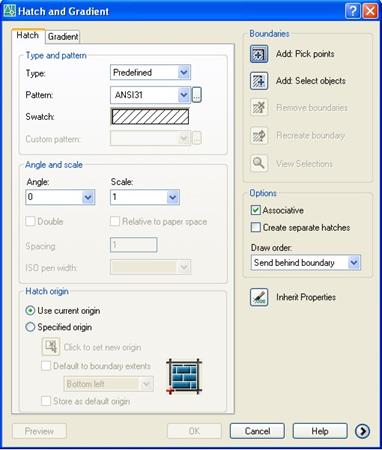

Hatch

Hasureaza o zona inchisa

Gradient

Hasureaza o zona inchisa folosind treceri gradate de culori pentru a accentua impresia de lumina reflectata de un obiect

Region

Creeaza o zona bidimensionala inchisa, formata din linii curbe inchise

Table

Creeaza un tabel in desen

Multiline Text

Scrie text

Command: line

Specify first point:

Specify next point or [Undo]:

Specify next point or [Undo]:

Specify next point or [Close/Undo]: @ 20 < - 90

Arc definit prin trei puncte

Command: arc

Specify start point of arc or [Center]:

Specify second point of arc or [Center/End]:

Specify end point of arc:

Arc definit prin punct initial, centru, punct final

Command: arc

Specify start point of arc or [Center]:

Specify second point of arc or [Center/End]: c

Specify center point of arc:

Specify end point of arc or [Angle/chord Length]:

Arc definit prin punct initial, centru, unghi la centru

Command: arc

Specify start point of arc or [Center]:

Specify second point of arc or [Center/End]: c

Specify center point of arc:

Specify end point of arc or [Angle/chord Length]: a

Specify included angle:

Arc definit prin punct initial, centru, lungimea corzii

Command: arc

Specify start point of arc or [Center]:

Specify second point of arc or [Center/End]: c

Specify center point of arc:

Specify end point of arc or [Angle/chord Length]: L

Specify length of chord:

Arc definit prin punct initial, punct final, raza

Command: arc

Specify start point of arc or [Center]:

Specify second point of arc or [Center/End]: E

Specify end point of arc:

Specify center point of arc or [Angle/Direction/Radius]: R

Specify radius of arc:

Cerc definit prin centru si raza

Command: circle

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:

Specify radius of circle or [Diameter]:

Cerc definit prin centru si diametru

Command: circle

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:

Specify radius of circle or [Diameter] <20>: d

Specify diameter of circle <40>:

Cerc definit prin trei puncte

Command: circle

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 3p

Specify first point on circle:

Specify second point on circle:

Specify third point on circle:

Cerc definit prin doua puncte diametral opuse

Command: circle

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 2p

Specify first end point of circle's diameter:

Specify second end point of circle's diameter:

Cerc tangent la doua entitati, de raza data

Command: circle

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: ttr

Specify point on object for first tangent of circle: (se alege primul obiect caruia cercul ii va fi tangent)

Specify point on object for second tangent of circle: (se alege al doilea obiect caruia cercul ii va fi tangent)

Specify radius of circle:
